Standard Fixed Cast Zinc Air Amplifier AM75

  • $475.00


Benefits

  • Longer life in difficult environments than competitive models.
  • Lower compressed air consumption than ejectors and venturi.
  • Maintenance free with output easily controlled, safe to use.

Advantages

  • Compact design, simple, lightweight and portable.
  • Driven by air, not electricity for safety.
  • No moving parts hence safer and maintenance free.
  • Each end can be dusted for light conveying application
Air consumption at 5 Bar 89 dB(A)
Internal diameter 75 mm
Air Amplification 15:1

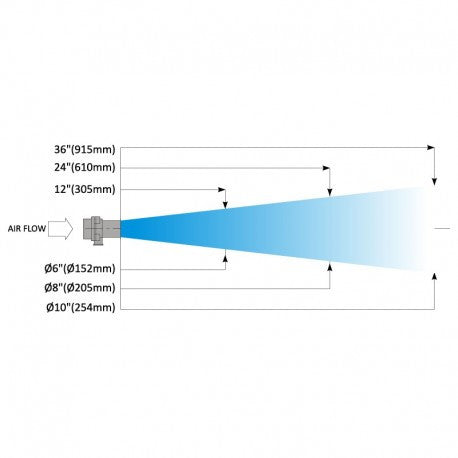

Blowing pattern Wide
Connection type Female 1/2”
Material Zinc
Shims Stainless Steel
Meets the OSHA directives Yes
Suitable for OEM’s Yes
Air consumption at 5.5 Bar 64 Nm³/h
Air Flow at outlet 968 Nm³/h
Applications Blow Off and Vacuum
Air Velocity at outlet 34 m/s
