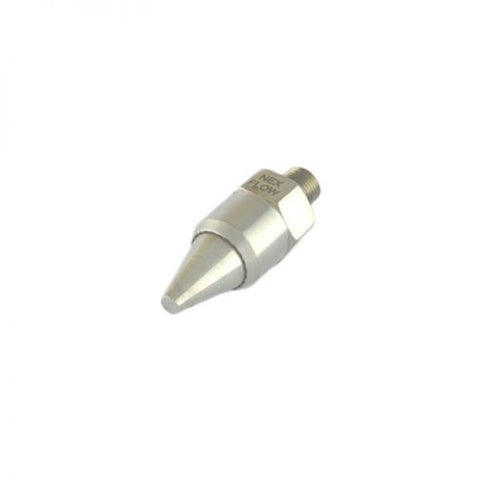

47003S-316L Standard 316L Stainless Steel 1/8" NPT male fitting

Nex Flow USA

  • $70.00

Standard strength nozzle with a 1/8″ male NPT connection and ideal for most blow-off applications involving liquids. Made of 316L stainless steel for longer life in extreme environments.

Blowing force at 5 Bar 3.4 N
Air consumption at 5 Bar 15 Nm³/h
Sound level at 5 Bar 74dB(A)
Air Amplification 50:1
Blowing pattern Concentrated
Connection type Male 1/8” BSP

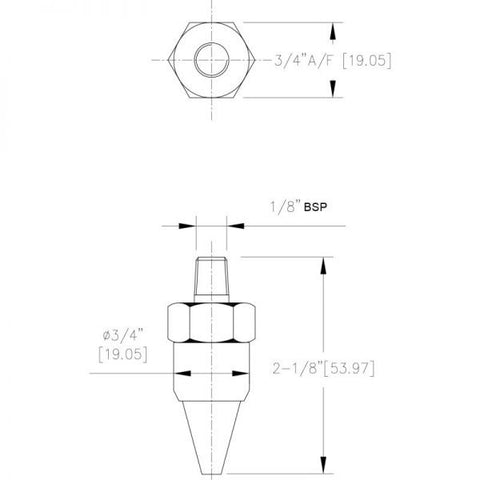

Dimensions Ø19x54mm
Noise reduction 20dB(A)
Air savings SCFM 15 Nm³/h
Meets the OSHA directives Yes
Suitable for OEM’s Yes
Positioning for blow off Close or Medium
Resistance to shock High
Adjustable blowing force No
